We are engaged in manufacturing and supplying Training Kits that are designed for assisting the student in understanding the process of various techniques. These include Micro Strip Training Kits, Microwave Training Kits and Radar Communication Training Kits. Manufactured using advanced technology; these are appreciated for illustrating the essential principles of this field of study. Further, these are also offered with customized options to meet the specific requirements of the clients. Our range of Training Kits includes following:

Micro Strip Training Kits

We are providing Micro Strip Training Kits that is assured to have international quality standards. These micro strip trainer kits are known for assisting the student to investigate the principles of micro strip technology. To illustrate the essential principles of this field of study, the high precision bench to system uses up to date micro strip components. These are specially designed to use with basic test equipment such as a dual DC supply and a digital multimeter. We also offer VCO and detector along with a calibration curve chart. Further, these systems are also equipped with student manuals and a well designed carrying case. Some of the salient features of our Micro Strip Training Kits are following:

Latest microwave technology
2.4GHZ to 3.4GHZ VCO
2 to 4 GHZ PIN DIODE modulator
No ancillary test equipment required
Safe low power output
Components identified with inscribed reference number
Supplied in protective case

Kit contains:
- Power source and detector action
- Action of a 3-port circulator
- Insertion loss measurement on a low-pass filter
- Measurement of return loss, reflection coefficient and VSWR of a filter, micro strip and commercial matched loads
- Properties of a power divider and rat-race coupler
- Effective dielectric consultant/line loss measurement with a ring resonator
- Dc biasing and MMIC amplifier investigations
- Pin diode modulator investigations
- Microwave radio link and antenna investigations

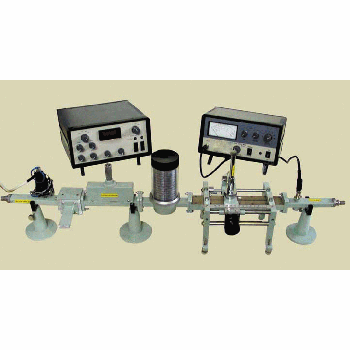

Microwave Training Kit

We offer Microwave Training Kit that are three centimeter waveguide training system and are widely appreciated by the clients. These are used to provide in depth training on microwave waveguide device. It is also helpful to understand the transmission characteristics of the frequency and universal frequency band width in the X series. Using this kit, the experimental demonstration of frequency can be done in simple method. Radio communication system can also used for high quality long distance calls through satellite. Performance based on the high frequency microwave propagation direction, following are some of the features of our microwave system:

Similar to light
Optimum immune function reduces high intensity microwave frequency noise during long distance transmission
Effective lea-ming tool
Simple and flexible installation component
Easy to carry and transport
Offers functional demonstration experiment and related to the applications of spectrum, horn antenna transmitting and receiving

Parts Specifications:
- Gunn oscillator 9-11Ghz, P = 15Mw
- Slide crew tuner coefficient of adjustable voltage standing wave: 20~1.06
- Slotted line range of working frequency 8.2Ghz ~ 12.4Ghz
- Coefficient of VSWR: Moving distance of probe: 40 mm
- Pin modulator square wave (pulse)
- Crystal detector range of frequency 8.2Ghz ~ 12.4Ghz
- Coefficient adjustable voltage standing wave: <1.05
- Frequency meter frequency range 8.2Ghz ~ 12.4Ghz
- Error=0.3% (9.5,10,10.5,11 four points)
- Variable attenuator frequency range is 8.2Ghz to 12.4Ghz attenuation ranger 0~2 db
- Measurement accuracy + 4db VSWR Coefficient 1.25
- Fixed attenuator 20db+ 5db S<1.15
- Terminator coefficient of standing wave: =1.05
- Wave to coax adapter coefficient of standing wave: =1.05
- Waveguide 2 EA 10.16*22.86*100 mm BJ100
- Metal stand 8 pc fixed height: 63 mm
- Power supply 12volts
- Hybrid tee S<2
- Directional coupler centre frequency coupling:10db+2db directional=20db
- VSWR coefficient: main, auxilary line <1.25
- Horn antenna gain:>14db; VSWR: <1.30
- 1KHZ square generator 1K+5%
- Wave guide crankle section 90*, VSWR <1.15
List of experiments:
- Measurement of dielectric constant of solid
- Measurement of dielectric constant of liquid
- Measurement of Phase shifter

Radar Communication Training Kits

We provide Radar Communication Training Kits that are complete trainers offered with all necessary microwave components. These kits are widely used to understand the basic principles of radar operation. Our Radar Communication Training Kits encompasses microwaves, modulator, a variable attenuator and transmit antenna in form of horn. The detector pulse from modulator is applied to CRO, target is metallic reflector and the receiver consists of horn antenna. Further, to measure time delsy of returned signal, the returned reflected signal is also applied to CRO. Following are the other details of our range of Radar Communication Training Kits:

Training Kits:

Klystron power supply
Klystron tube non tunablw detector mount\
Variable attenuator 30db
Horn antenna
Detector
CRO
Target plate
Cables

List of Experiments:

Measurement of distance of an object (Reflector)
Observe effect of pulse width and PRF in Radar
Observe effect of object in motion
Study of target signatures with radar absorbing objects

Mic Training Kits

We offer Microwave Training Kits that are three centimeter waveguide training system and are widely appreciated by the clients. These are used to provide in depth training on microwave waveguide device. It is also helpful to understand the transmission characteristics of the frequency and universal frequency band width in the X series.
